Free

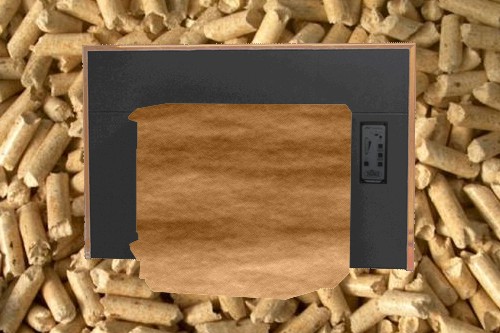

Insert

WIDTH

MIN 25"

MAX 40"

HEIGHT

MIN 31" / 23"INSERT

MAX 31"

DEPTH

MIN 23"

HEARTH REQ.

MIN 6"

14" Pertruding

WEIGHT

225 lbs. / 103 kg

200 lbs. / 90 kg

FUEL CAPACITY

50 lbs. / 22 kg

40 lbs. / 18 kg

MOBILE HOME

APPROVED

APPROVED

BURN TIME

11 to 50 hrs.

9 to 40 hrs.

INPUT/HR*

40,000 BTU

40,000 BTU

FLUE DIAMETER

3" / 75 mm

3" / 75 mm

CLEARANCE TO COMBUSTIBLES

TO BACKWALL

1" / 25 mm

TO CORNERS

1" / 25 mm

TO SIDEWALL (JE-BAYWIN)

12" / 300 mm

TO SIDEWALL (JE-XL)

5" / 125 mm

TO MANTLE

13" / 330 mm

ALCOVE MAX. DEPTH

30" / 762 mm

ALCOVE MIN. WIDTH

48" / 1220 mm

ALCOVE MIN. HEIGHT

48" / 1220 mm

FLOOR PROTECTOR

6" / 150 mm

ELECTRICAL REQUIREMENTS

115 Volts / 3 amp

WITH SELF IGNITER

115 Volts / 9 amp

EPA STATUS

EXEMPT

• All Visible Corners Are Finished For Safety And Appearance.
• Heavy Duty, Full Hearth Extension.
• Heavy Block Steel 24K Gold Plated Door.
• Ceramic Safety Glass Rated For 1400 Degrees F (760 Degrees Celsius)
• Full Width Ash Lip To Reduce Spillage When Door Is Opened
• Aluminized Steel Interior Heat Shields, And Stainless Steel Burn Pot Resists Heat And Corrosion. Ten Tube Heat Exchanger With Quick, Removable Exchanger Tube Heat Shield. Rod And Scraper Type Heat Exchanger Cleaner.

Black door $2499CAN
On Line $1449CAN

• Digital control system for fully automatic control - high/low - on/off or manual mode
• 10 Tube Heat Exchanger
• A 50 lb (22 kg) Feed Hopper Can Be Easily Converted To 135 lb (60 kg) With Optional Hopper Extension.
• Large Capacity Ash Reservoir Reduces Cleaning Frequency.
• Top Loading Fuel Feed System Separates Burn Pot And Fuel Storage Reducing Risk Of Burn Back.
• Negative Pressure Burn Box Prevents Spillage Of Smoke And Fumes Into The House.
• Manual Draft Control Allows Easy Adjustment For Fuel And Draft Conditions.
• Adjustable Fuel Feed From 1 To 4.5 lbs (454 gram to 2 kg) Per Hour.
• Variable Speed Exchanger Fan.
• Unique "Bouncing Flame" Heater Design.
• Glass screen, To Reduce The Frequency Of Glass Cleaning, Is Standard Feature.
• Effective Air Wash System Keeps Glass Clean.
• Electric Igniter.
• Safety Certified In US, Canada, Europe.
• Certified For Mobile Home Installation.
• Insert Is Certified For Masonry Or Factory Built Zero Clearance Fireplace Installation.
• Optional:
• Fresh Air Intake Kit
• Backdraft Check Valve For Air Intake
• Hopper Extension And Insert Load Chute
• Remote thermostat
• Wireless thermostat control
